series: UPS On-line 3/3 phase
ORVALDI Power+
The ORVALDI Power+ model is an advanced uninterruptible power supply (UPS) designed to provide reliable and stable power for the most demanding industrial and IT applications. With its modular design and state-of-the-art technology, ORVALDI Power+ ensures continuous operation and the security of critical systems in any situation
PRODUCT FEATURES:
- Compatible to lithium-ion battery.
- True double-conversion online UPS.
- High output power factor of 1.0.
- Wide input voltage range (110-300 V AC).
- Modular design for scalability.
- High overload capacity.
- Parallel redundancy capability for guaranteed power.
- Compatible with generators.
- User-friendly LCD display.
- ECO mode for energy saving.
LIST OF APPLICATIONS:
- Industrial equipment
- Data centers
- Medical equipment
- Telecommunications systems
- Critical infrastructure
- High-power servers
DOWNLOAD:
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
ORVALDI Power+ utilizes an online double-conversion topology, ensuring that connected equipment receives a consistent and clean power supply. This topology continuously filters and converts incoming power, effectively isolating sensitive devices from power disturbances and ensuring optimal performance and protection in all operating conditions
Battery Configuration

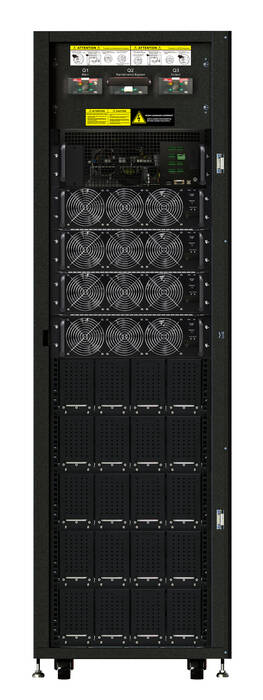

The ORVALDI Power+ model is available in two chassis options: with built-in batteries and with external battery support. The version with built-in batteries provides a compact solution, ideal for spaces with limited room, offering quick and easy deployment. On the other hand, the version with external batteries allows for flexible customization of backup time to meet specific user needs, making it an excellent choice for more demanding applications.
.jpg)
Modular Design
ORVALDI Power+ features a modular design that allows for easy scalability to meet the growing power needs of the user. The power modules can be added or replaced in a hot-swap manner, meaning the entire system can be serviced without interrupting operation. This flexibility not only minimizes downtime but also ensures continuous operation even during maintenance or upgrades.

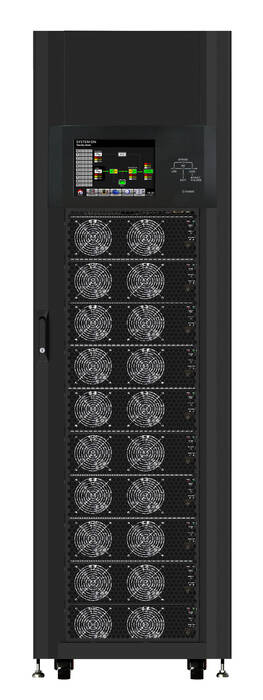

10” LCD display
Large, 10-inch LCD display that provides a clear and intuitive user interface. With its high resolution, the display allows for easy monitoring of all critical operating parameters, such as voltage, current, battery charge level, and current operating mode. Additionally, the touch interface offers quick access to system settings and functions, making daily operation and management of the UPS straightforward and efficient.
Detailed Alarm and Event System
ORVALDI Power+ is equipped with a detailed alarm and event system that monitors and logs all critical operating parameters of the device. This system enables immediate detection and reporting of any irregularities, allowing for a quick response and preventing potential failures. Additionally, the event history stores up to 500 entries, facilitating thorough system analysis and simplifying the diagnosis of any issues.
Other advantages
-Front.jpg)
- Adaptive Cooling System: The innovative cooling system adjusts its performance according to the load, reducing energy consumption and extending the lifespan of components.
- Wide Input Voltage Range: The UPS is designed to operate over a wide input voltage range, enhancing its reliability in unstable power grid environments.
- High Resistance to EMI/RFI Interference: The UPS offers exceptional protection against electromagnetic and radio frequency interference (EMI/RFI), which is particularly important in environments with high levels of disturbance.
- Comprehensive Communication Options: The UPS is equipped with multiple communication interfaces (USB, RS-232, SNMP), allowing for remote monitoring and power management from any location.
- Automatic Generator Synchronization: The UPS features automatic synchronization with generators, ensuring continuous power supply even in emergency situations when the main grid fails.
- Fast Service and Maintenance: Thanks to its modular design, individual components can be easily replaced, significantly reducing service time and minimizing downtime.
- Modularity and Redundancy: The UPS offers modularity and redundancy features, providing enhanced flexibility and reliability for critical applications.
- EPO - Emergency Power Off: The UPS includes an Emergency Power Off (EPO) function, allowing for quick shutdown of the power supply in case of emergency.
Network Control and Monitoring Features
Network Control and Monitoring Features
- Enables control and monitoring of multiple UPS units via LAN and INTERNET.
- User-friendly power analysis chart: event statistics, historical data graph export.
- Real-time dynamic UPS data charts (voltage, frequency, load level, battery level).
- Secure OS shutdown and data loss protection in the event of a power failure.
- Warning notifications via audible alarm, broadcast program, mobile messenger, and email.
- Scheduled UPS on/off, battery test, programmable outlet control, and audible alarm control.
- Password protection and remote access management.
- Supports VMware ESX and ESXi.
- Multilingual support: English, German, French, Spanish, Italian, Portuguese, Polish, Czech, Russian, Ukrainian, Turkish, Chinese.
The UPS is equipped with USB and RS232 ports, as well as an SNMP card slot, allowing for easy management and remote monitoring from a computer, enhancing the safety of connected devices.
ViewPower |
ViewPower Pro |
SNMP Web Manager |
.png) |
 |
 |
| Smart management software to montior and control multiple UPS via LAN and Internet. | Advanced management software to monitor and control multiple UPSs via LAN, Internet, and SNMP card. | SNMP Web Manager is a SNMP web card manager software. Users can search and operate all SNMP devices in the LAN via this interface. Then, user can double click device to open web server monitoring page. |
High Efficiency in ECO Mode
The ECO Mode allows for additional energy savings by powering the load directly from the bypass when the grid parameters are within acceptable ranges, significantly reducing operational costs. With this feature, ORVALDI Power+ not only ensures reliable power but also enhances energy efficiency, leading to lower energy consumption and reduced operating expenses
TECHNICAL DATA:
| Model | 30U-90kW | 30U-120kW |
| PHASE | three-phase input / three-phase output | |
| CAPACITY | 90kW | 120kW |
| CAPACITY OF ONE POWER MODULE | 30KVA/30kW | |
| MAX. NUMBER OF POWER MODULES | 3 | 4 |
| MAX. NUMBER OF BATTERY SETS** | 3 | - |
| INPUT | ||
| Nominal Voltage | 3 x 380/400/415VAC (3 Ph+N) | |
| Input Voltage | 208-304 VAC (3-phase) @ 70% Load; | |
| 305-478 VAC (3-phase) @ 100% Load | ||
| Input Frequency | 46~54 Hz or 56~64 Hz | |
| Power Factor | >0.99 @ 100% Load, >0.98 @ 50% Load | |
| OUTPUT | ||
| Output Voltage | 3 x 380/400/415VAC (3 Ph+N) | |
| Output Frequency (battery mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | |
| Output Frequency (synchronous mode) | 46~54 Hz or 56~64 Hz | |
| Overload | 1 hour for 110%, 10 minutes for 125%, 1 minute for 150%, 200 ms for > 150% | |
| Harmonic Distortion | ≦ 2 % THD (with linear load); ≦ 4 % THD (with nonlinear load) | |
| Transfer Time | Zero | |
| Output Voltage Shape (battery mode) | Pure sine wave | |
| EFFICIENCY | up to 94.5% | |
| Battery | ||
| Battery Type | Built-in battery | External battery |
| Quantity | 32/36/40 pcs (Adjustable) | |
| Charging Current (max.) | 8A | |
| Charging Voltage | ±13.65V x N (N=16~20) | |
| LCD Display | UPS status, load level, battery level, input/output voltage, discharge time counter, and error status | |
| Alarms | ||
| Battery Mode | Signal every 4 seconds | |
| Low Battery Level | Signal every second | |
| Overload | Two signals per second | |
| Error | Continuous alarm | |
| Physical Data | ||
| Dimensions [mm] | 1100 x 600 x 1475 | 1100 x 600 x 1475 |
| Weight [kg] | 675 | 333 |
| Environment | ||
| Humidity | < 95% (non-condensing), 0-40 °C | |
| Noise Level | less than 60dB @1 Meter | less than 70dB @1 Meter |
| Communication | ||
| USB/RS232 | Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, Unix, and MAC | |
* When the temperature exceeds 30 ℃, the output power factor will be reduced to 0.9 at 31 ℃ ~ 35 ℃ and 0.8 at 36 ℃ ~ 40 ℃.
** One battery module contains 10 pcs of 12/9 Ah batteries in one tray (a complete battery set includes 4 modules).
Product specifications are subject to change without notice.
